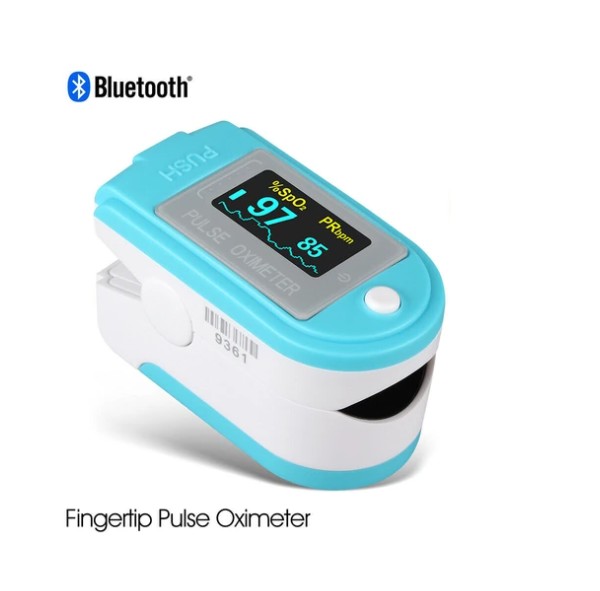

Pulse Oximeter CMS50D-BT (Bluetooth) / OLED pulse oximeter

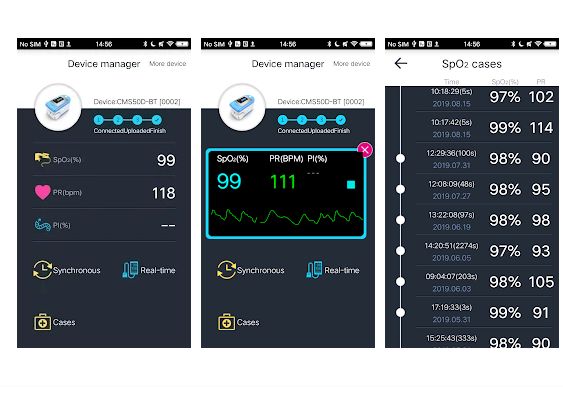

CMS50D-BT Pulse Oximeter is a portable equipment adopting advanced technology, it mainly checks SpO2 and PR value through the finger, which provides advanced, non-invasive and scientific means for quantitative measurement of oxygen saturation. CMS50D-BT Pulse Oximeter is applicable for use in plateau area, community healthcare, oxygen bar, Fitness clubs, physical training room, family and medical institution, etc. The App „Health Aide“ (unfortunately only Android and in English) allows the display of the values on the smartphone, the recording, as well as the storage (saving) of the measurements over a longer period of time.

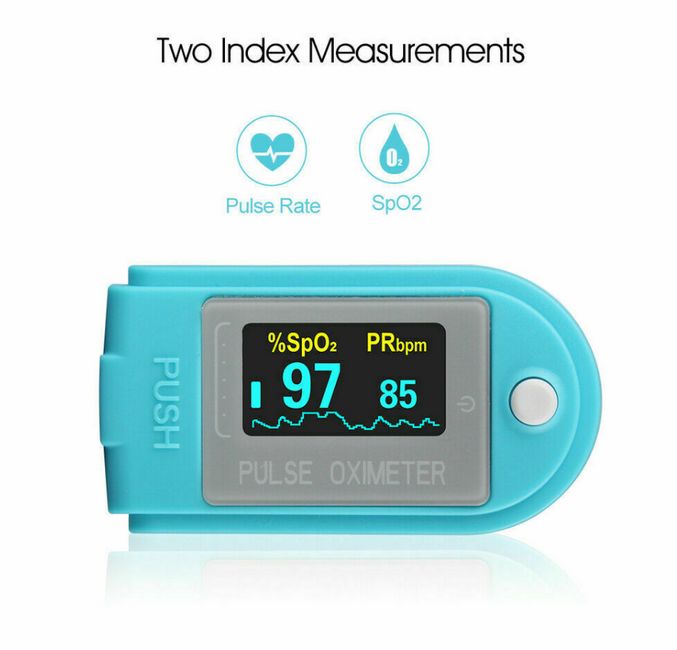

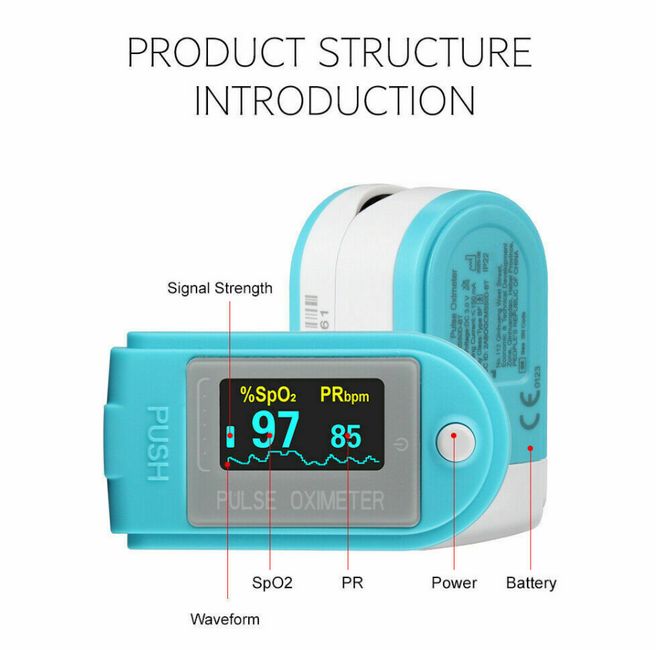

The display of the pulse oximeter SP02% gives a statement about the current blood oxygen saturation in percent, the display PR bpm shows the heart rate in heart rate per minute. In addition, these values are still supported graphically. During the oxygen saturation, a corresponding SP02% wave is displayed under the values, the signal strength of the heart rate is displayed as a histogram bar on the side.

Characteristics:

- Display of SpO2 value, PR value, bar graph and pulse waveform
- Low-voltage indication: the low power indication symbol appears when the voltage is too low to work
- Automatic standby function
- Display direction can be changed automatically
- Sound prompt function: over-limit prompt of measured value, finger-out prompt, low power prompt (wired equipment)
- Data memory function
- Bluetooth-Version / Evaluation via App: Health Aide (Android)!

Technical specifications:

- Display: OLED (0.96 "), resolution 128 * 64 pixels
- Blood oxygen saturation:
        Measuring range 0 - 99%
        Accuracy: +/- 2% between 70-100
- Pulse rate:
        Measuring range: 30-250 BPM
        Accuracy: +/- 2 BMP or measured value +/- 2%
        Pulse Strength: Histogram
- Power supply:
        2 x AAA alkaline battery 1.5 V
        Consumption: less than 40mA
        Operating time: ~ 30 hours
- Other: US FDA Lisitng (Premarket Submission Number (510K): K073454 Listing Number: D064765, K090671 Listing Number: D078664);
              And CE, TÜV for Europe (Cert.No.: G1 10 02 50972 013)
- Dimensions / Weight
       Length: 58mm
       Width: 32mm
       Height: 34 mm
       Weight: 50g (including batteries)

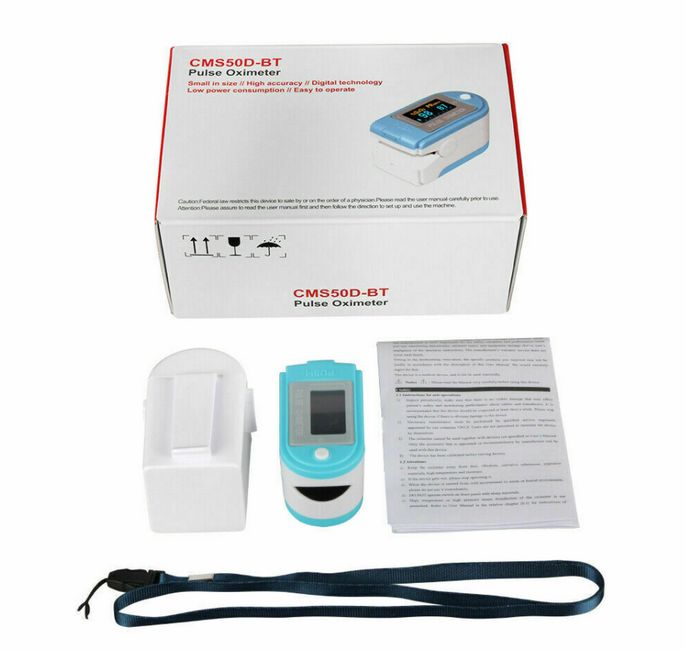

Delivery:

- pulse oximeter CMS50D-BT (Bluetooth)
- 2x AAA-battery
- Strap strap
- Instructions for use
- small bag

Note: The pulse oximeter should not be used as a monitoring device since no alarm function is integrated. The pulse oximeter plays a supporting role in the diagnosis of patients. It does not replace any medical diagnosis. Bright light sources around the sensor can falsify the measurement result. Low blood pressure, low contractility index, anemia, shock or low body temperature lead to measurement errors.
