Product details
Portable high-end ultrasound device Viatom Dual-Head Wireless 128 – premium wireless sonography in pocket size.
The Viatom Dual-Head Wireless 128 is a portable, latest-generation ultrasound device that combines professional image quality with maximum flexibility in everyday clinical practice. With its dual transducer (linear & convex) and 3-in-1 function (convex, linear, phase array), it is the ideal solution for physicians, clinics, emergency medicine, and mobile applications that require fast and accurate diagnostics directly at the patient's bedside.

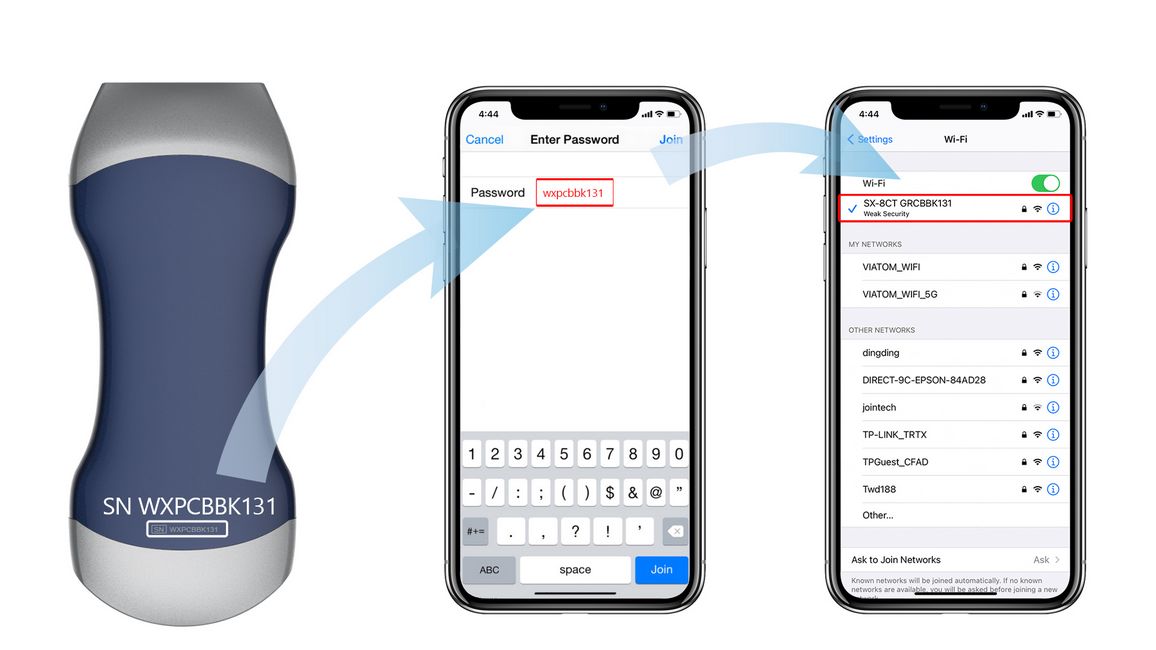

Instead of stationary systems or wired handheld devices, the Viatom Dual-Head Wireless relies on a completely wireless WiFi connection to a smartphone, tablet, or PC. The free “WirelessUSG Flash” app is available for iOS, Android, and Windows and is continuously being developed—so you always stay up to date, both technically and clinically. Thanks to an intuitive touch interface, preconfigured presets, and well-designed user guidance, examinations are ready to go in seconds—ideal for emergency rooms, rounds, practices, or house calls.

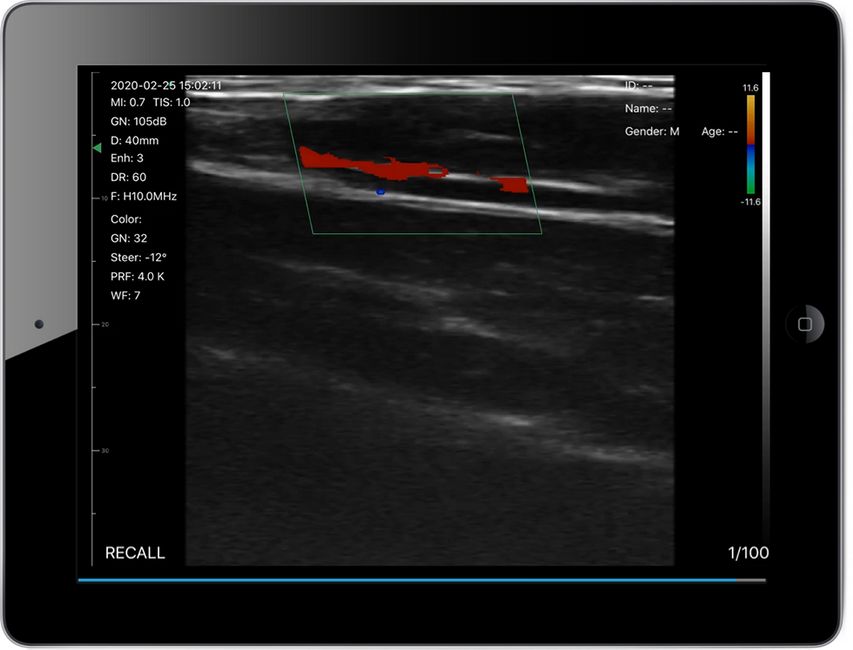

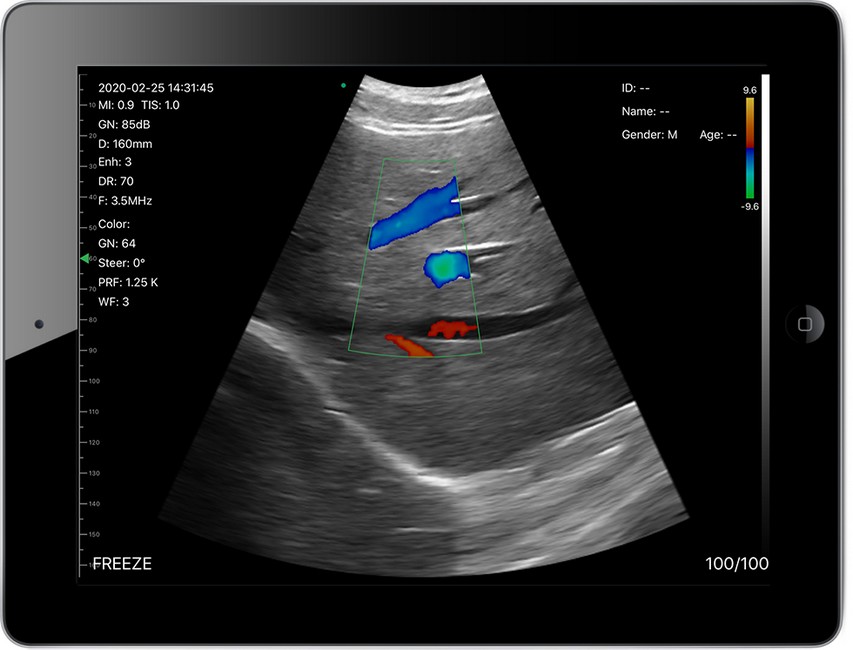

The integrated 128 piezo elements and 64 channels deliver high-resolution imaging with clear structure display, high frame rate (up to 18 fps), and effective noise reduction. Individual settings such as B-Gain, TGC, dynamic range, focus and depth settings, as well as harmonic image processing, allow precise adaptation to any situation. Supported display modes (B-mode, B/M-mode) and optional color Doppler variants (color Doppler, power Doppler, PW Doppler) make the system a fully-fledged all-rounder in sonography.
Weighing only approx. 220 g, with compact dimensions and IP67 protection, the device is designed for demanding everyday use – dustproof, waterproof, and resistant to disinfection. The powerful battery allows for 3–5 hours of uninterrupted use, and the wireless charging station ensures convenient and fast recharging between examinations. This makes the Viatom Dual-Head Wireless 128 ideal for continuous use in clinical settings as well as for mobile applications.
The dual probe covers a wide clinical spectrum: the linear head is suitable for vascular diagnostics, musculoskeletal examinations, pediatrics, breast sonography, thyroid, carotid, and smaller organs, among other things; the convex head is ideal for the abdomen, deeper organs, and many internal medicine applications. A single device thus replaces several classic transducers and reduces investment and maintenance costs.
DICOM compatibility enables the seamless integration of images and videos into digital patient records and clinical workflows. Images can be saved and processed as JPG, videos as AVI or in the DICOM standard, which significantly simplifies documentation and diagnosis. The one-time purchase model with no ongoing license fees or subscriptions creates cost transparency and planning security.
The scope of delivery includes the Viatom Uprobe-C (double-head) mobile ultrasound device, integrated lithium-ion battery, German quick start guide, detailed English user manual, micro USB cable, and a wireless charging station. Optionally, the system can be ordered as a premium package including an iPad and a robust carrying case (hard case) – completely preconfigured so you can get started right out of the box.
The device is an indispensable diagnostic tool that is ideally suited for rapid deployment or for complete diagnosis at the bedside. It can be used for a wide range of examinations in daily use, e.g. emergency medicine, anesthesia, intensive care medicine or for checking vascular accesses. More info on Vitom under Ultrasound Uprobe-C!
Product Features:
- Dual head linear/convex for a wide range of applications

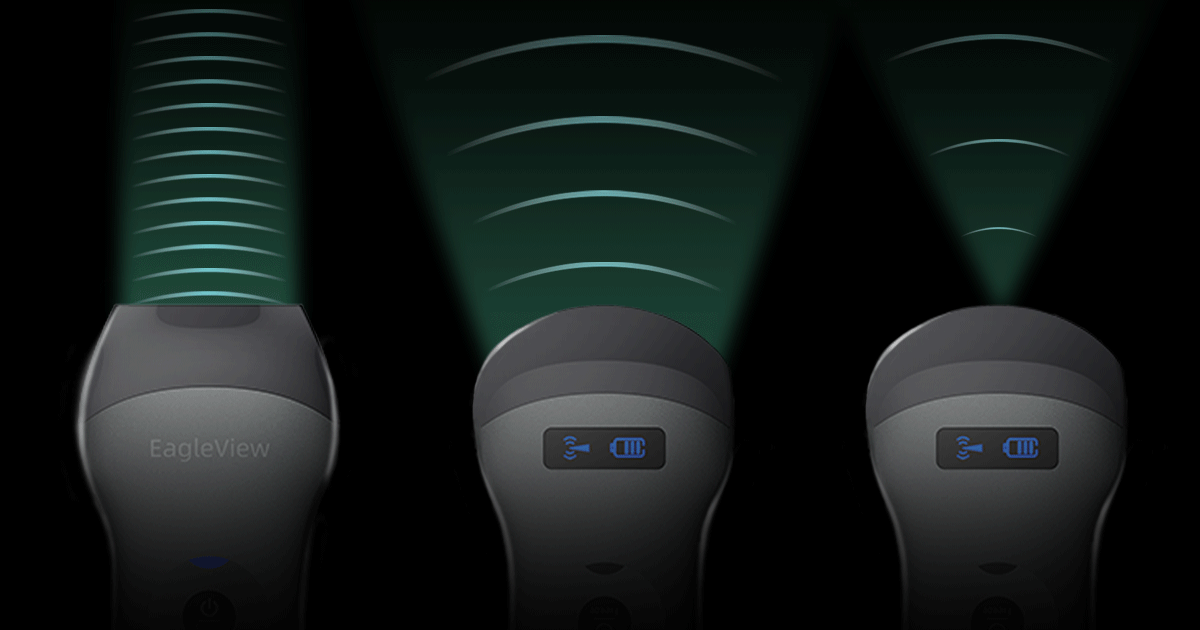

- 3-in-1 ultrasound scanner with convex, linear, and phased array transducers for versatile diagnostic capabilities
- mobile(wireless) and lightweight (260gr)

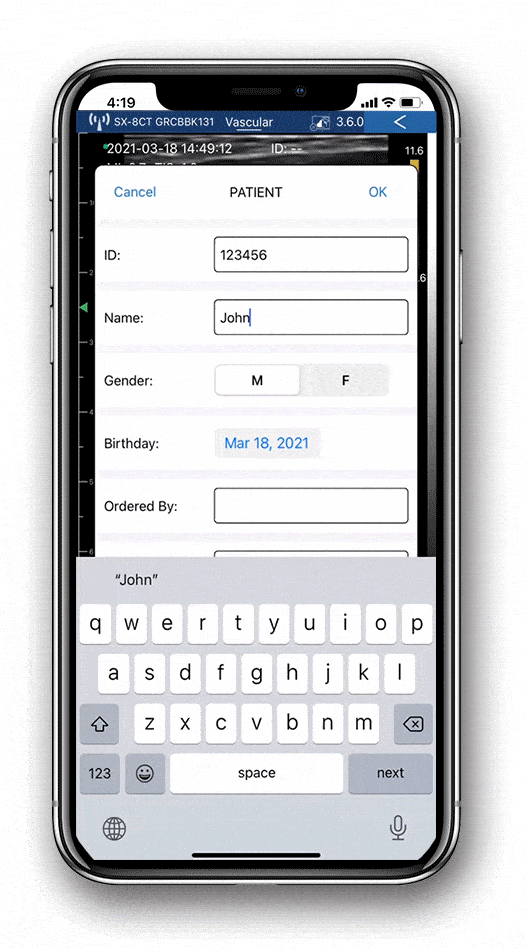

- open system (App for iOS/Android/Windows) / App: WirelessUSG Flash
- DICOM compatible
- Minimized number of buttons and intuitive touchscreen user interface (app)
- Easily accessible presets
- Purchase model - no additional ongoing costs!
- OPTIONAL available: Premium version incl. Apple iPAD (128GB) + ready set up/installed
Technical specifications:
Modeltyp: Uprobe-C 4PL
Manufacture: Sonostar
Size: 156mm x 60mm x 20mm (6.1'' x 2.4'' x 0.8'')
Weight: 260g (0.6 lbs)
Battery capacity: 3 ~ 5 hours
Protection class: IP67 waterproof
Compatible with common disinfectants
Charging station: wireless
Charging time: fully charged within 2 hours
Clinical applications:
Linear: vascular, MSK, pediatrics, breast, thyroid, carotid, small organs,
nerves
Convex: abdomen, cardiac, gynecology, obstetrics, urology, kidney, lung
Image/Display:
Measure: Length, area, angle, heart
rate, obstetrics
Format: jpg, avi, and DICOM
Frame rate: 18 frames/second
Image adjustment: BGain, TGC, DYN, focus, depth, harmonics, noise reduction
Probe:
Probe
elements: 128 Elements
High-Frequency Board Channels: 64 Channels
Probe Frequency: Convex head: 3.5MHz/5MHz
Linear head:
7.5MHz/10MHz
Scan Depth: Convex head: 90/160/220/305mm
Linear head:
20/40/60/100mm
Head width: Convex head: 45mm
Linear head: 40mm
Settings:
Scanning mode: Electronic array
Display mode: B, B/M

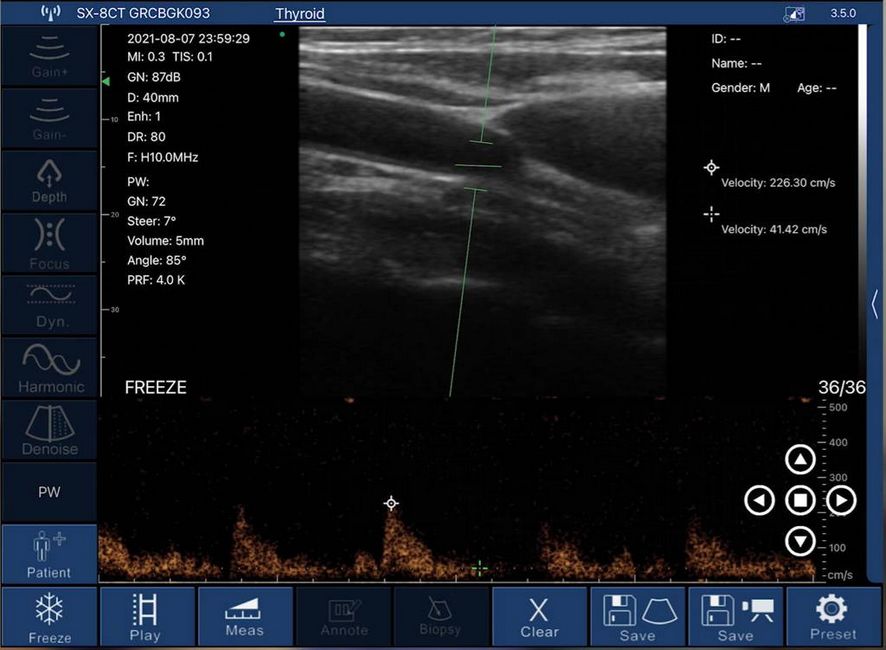

Color Doppler Version: B+Color, B+PDI, B+PW
Compatibility:
iOS 9.0 or later / iPhone: 4S, 5, 5C, 5S, 6, 6 Plus, 7, 7 Plus, 8, 8 Plus, X,
XR, XS, XS Max, SE (2nd generation), 11, 11 Pro, 11 Pro Max, 12 Mini, 12, 12
Pro, 12 Pro Max.
Ipad: Air 2, Air (3rd generation), Air (4th generation), ipad Pro series, ipad
mini (5th generation), ipad (8th generation).
Android 10 or later (the latest models of Android devices may not be supported.
Scope of
delivery:
- Viatom double-head ultrasound/ultrasound mobile device Uprobe-C 4PL
- Internal Battery
- App "WirelessUSG" available for free in AppStore/Google PlayStore
- Quick User Guide
- Micro USB cable
- Wireless Charger
Software:
iOS (iPhone/iPad App) Link: WirelessUSG Flash
Android App Link: WirelessUSG Flash
Windows-Software Link: SonoStar-Service-Site
Productvideo:
